Description

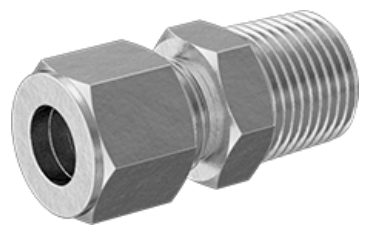

Yor-Lok® Fitting for Copper Tubing, Straight Adapter for 3/8 in. Tubing Outside Diameter x 3/8 in. NPT Male, 5272K195
Features:
- For Use With: Air, Cutting Oil, Diesel Fuel, Fuel Oil, Gasoline, Hydraulic Fluid, Mineral Oil, Water
- Temperature Range: -40° to 400° F
- Tubing: Use with seamless copper
- Specifications Met: ASME B31.3
- Nut with two sleeves (ferrules) gives these fittings extra gripping power
- Sleeves bite into tubing asnut is tightened, creating strong seal
- Known as instrumentation fittings, made to tight tolerances for use in high-precision applications
- Fittings are brass for good corrosion resistance
- Compatible with Swagelok®, Let-Lok®, and A-Lok® fittings
Specifications:
| Outside Diameter NPT Thread | 3/8 in. |
| Wall Thickness | 0.035 in. |
| Pipe Size | 3/8 in. |
| Material | Brass |
| Maximum Pressure | 1000 psi @ 72 °F |
Specifications
| Model No | 5272K195 |
|---|
