Description
The YSI pH1200 operation is easy-to-use and includes a large, easy-to-read LCD. An autolock feature will hold the readings on the display once they reach stabilization. Simple 1-, 2- or 3-point calibration routine with automatic buffer recognition of US and NIST buffers and sensor efficiency function helps ensure the most accurate data. The instrument can be powered by batteries or through AC power.

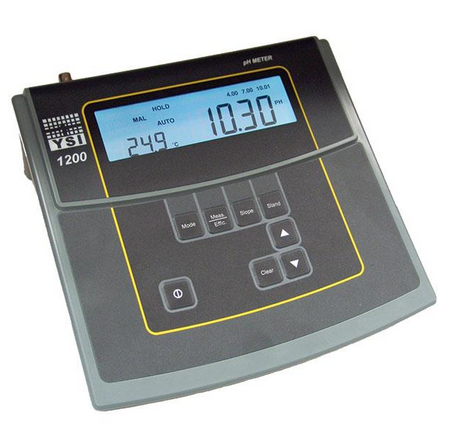

Measure pH accurately in the laboratory with the YSI pH1200.
Features:
- Laboratory grade pH/mV/temperature electrodes
- ATC temperature sensor or manual input
- Large, backlit LCD display
- Automatic buffer recognition for 1-, 2- or 3-point calibration of US or NIST buffers
- Sensor efficiency check helps ensure data integrity
- Autolock mode holds stable readings on the display
- Accepts U.S. (7.00, 4.01, 10.01) or NIST (6.86, 4.00, 9.18) buffer sets
- Double-junction piercing tipped or flat glass electrodes also available
- Battery or AC wall power
- 2-year warranty
YSI pH1200 Instrument General Specifications
| Temperature | Operating | 0 to +50°C (32 to 122°F) |
| Humidity | Operating | Up to 85% |
| Water Resistance | IP-65 water resistant, splash resistant | |
| Input Impedance |
>1013Ω |
|
| pH Temp Compensation | Auto/Manual 0.0 to 100.0°C (32 to 212°F) | |
| pH Buffer Recognition | Automatic recognition U.S. (4.01, 7.00, 10.01) or NIST (4.00, 6.86, 9.18); user-selectable | |
| pH Offset Recognition | +1.50 pH | |
| pH Slope Recognition | +30% | |
| Connector (pH/temp) | BNC/8 pin DIN | |
| Autolock Feature | Yes; if the difference between a reading at one second and the tenth second is less than 0.01 pH or 0.2 mV then the instrument will "lock" the tenth reading on the display | |
| Electrode Efficiency | Yes; recommended to replace electrode when the efficiency is <75% | |
| Backlit Display | Yes | |
| Dimensions | Size Weight |
150 mm x 203 mm x 72 mm (5.9 in x 8.0 in x2.8 in) 504 g (1.1 lbs) (batteries installed) |
| Power | External Internal |
115/230 V AC adapter Four 1.5 V C-size alkaline batteries |
| Warranty | 2-years | |
YSI pH1200 Specifications (Instrument Only)
| Range | Resolution | Accuracy | ||
| Temperature | 0.0 to +100°C (32 to 212°F) | 0.1°C | ±0.2°C | |
| pH | 0.00 to 14.00 units | 0.01 unit | ±0.01 unit | |
| mV | -1999.9 to +1999.9 mV | 0.1 mV | ±0.05% +1 digit | |
